Blackmagic ATEM SDI Pro ISO Switcher Key Features

• 4 x 3G-SDI Inputs with Standards Conversion

• Simultaneous ISO Recording of All SDI Inputs

• Program Output Recording

• Built-In Hardware Streaming Engine

• USB-C External Drive Recording

• USB-C Webcam Output

• Ethernet Live Streaming

• 2 SDI Program Outputs

• 16-Window Multiview Monitoring

• Fairlight Audio Mixer

• DaVinci Resolve Project Generation

• ATEM Software Control Included

The Blackmagic ATEM SDI Pro ISO Switcher is a professional live production switcher designed for broadcast environments, featuring four 3G-SDI inputs, direct hardware streaming, ISO recording of every input, and automatic DaVinci Resolve project generation for efficient live production and post-production workflows.

Blackmagic ATEM SDI Pro ISO Switcher Overview

The Blackmagic ATEM SDI Pro ISO Switcher is built specifically for broadcasters, live event producers, television studios, churches, educational institutions, corporate production teams, and professional streaming environments that rely on SDI connectivity. Unlike the HDMI-based ATEM Mini series, the ATEM SDI Pro ISO uses professional 3G-SDI connections, allowing longer cable runs, secure locking connectors, and greater reliability for demanding live productions.

Featuring four 3G-SDI inputs, each equipped with automatic frame synchronization and standards conversion, the switcher allows operators to connect multiple professional broadcast cameras, studio cameras, and SDI-enabled production equipment without worrying about matching video formats. This greatly simplifies setup while ensuring stable, broadcast-quality switching during live events.

The defining feature of the ATEM SDI Pro ISO is its advanced ISO recording capability. The switcher records each of the four SDI inputs individually while simultaneously recording the live program output. It also automatically creates a DaVinci Resolve project file containing all camera cuts, transitions, and audio synchronization, allowing editors to reopen the production and modify camera selections, improve transitions, remix audio, or relink higher-quality footage after the event.

A built-in hardware streaming engine enables direct Ethernet streaming using RTMP and SRT protocols, eliminating the need for separate streaming encoders while providing reliable live broadcasts to YouTube Live, Facebook Live, Twitch, and many other streaming platforms. The switcher also supports direct recording to external USB drives and functions as a high-quality USB webcam for Zoom, Microsoft Teams, OBS Studio, Skype, and similar applications.

Its integrated Fairlight audio mixer, professional chroma keying, picture-in-picture effects, media players, Multiview monitoring, and ATEM Software Control provide everything required for professional multi-camera productions in a compact desktop solution.

Blackmagic ATEM SDI Pro ISO Switcher Price in Kenya

Blackmagic ATEM SDI Pro ISO Switcher Specifications

These specifications are based on Blackmagic Design's official technical documentation.

Blackmagic ATEM SDI Pro ISO Switcher Performance

Blackmagic ATEM SDI Pro ISO Switcher Live Production & ISO Recording

• The ATEM SDI Pro ISO delivers professional broadcast-quality live production while simultaneously recording every SDI input independently, giving production teams complete freedom to edit or completely rebuild live productions after the event. This workflow is particularly valuable for television productions, church services, corporate conferences, educational broadcasts, interviews, sports coverage, and live events where production quality remains critical after the livestream concludes.

• ISO recording captures all four SDI camera feeds together with the completed program output, ensuring that every camera angle remains available for post-production editing. Editors can replace camera cuts, improve transitions, correct mistakes, and create alternate program versions without requiring additional recording systems or re-shooting the event.

• The switcher automatically generates a DaVinci Resolve project file containing synchronized camera angles, transitions, graphics, and audio. Editors can immediately begin refining the production inside DaVinci Resolve without manually synchronizing multiple recordings, dramatically reducing editing time while maintaining complete creative flexibility.

• The integrated hardware streaming engine supports direct Ethernet streaming using RTMP and SRT protocols, allowing stable livestreams to YouTube Live, Facebook Live, Twitch, and many other compatible services without relying on software encoders that increase computer workload.

• Direct recording to external USB drives enables long recording sessions while simultaneously streaming live, providing finished H.264 files ready for delivery, editing, or archiving immediately after production.

• Automatic frame synchronization and standards conversion on every SDI input simplify production setup by allowing professional broadcast cameras using different supported HD formats to work together seamlessly without additional conversion equipment.

Blackmagic ATEM SDI Pro ISO Switcher Professional Video & Audio Features

• The Fairlight audio mixer provides broadcast-grade audio processing, including six-band parametric equalization, compressor, limiter, gate, master gain control, and audio-follow-video functionality. These professional audio tools ensure balanced sound quality throughout live productions while allowing independent control over embedded SDI audio and external microphone inputs.

• Built-in advanced chroma keying allows presenters to use professional green-screen backgrounds for virtual studios, weather presentations, educational broadcasts, product demonstrations, and branded corporate productions without requiring additional production hardware.

• Integrated picture-in-picture effects, transitions, media players, and DVE processing provide broadcasters with the creative tools necessary to produce polished television-style programs, webinars, interviews, and live presentations from a compact desktop switcher.

• The Multiview output displays all four SDI inputs, preview, live program, recording status, streaming status, and detailed Fairlight audio meters on a single monitor, allowing operators to monitor every aspect of the production efficiently while reducing the need for multiple displays.

• USB-C webcam output enables the switcher to function as a professional webcam for Zoom, Microsoft Teams, Skype, OBS Studio, and many other conferencing or streaming applications, allowing broadcast-quality multi-camera productions to integrate directly into online communication platforms.

• Free ATEM Software Control expands production capabilities through advanced switcher configuration, remote operation, macro creation, media management, audio mixing, and production automation on both Windows and macOS computers.

Blackmagic ATEM SDI Pro ISO Switcher Build & Design

• The ATEM SDI Pro ISO combines professional SDI connectivity with a compact desktop design, making it ideal for portable broadcast kits, permanent control rooms, educational facilities, houses of worship, and mobile production environments that require dependable professional video connections.

• Professional 3G-SDI connectors provide secure locking connections and support significantly longer cable runs than HDMI, making the switcher especially suitable for live events, television studios, sports venues, auditoriums, and conference centers where equipment may be positioned far from camera locations.

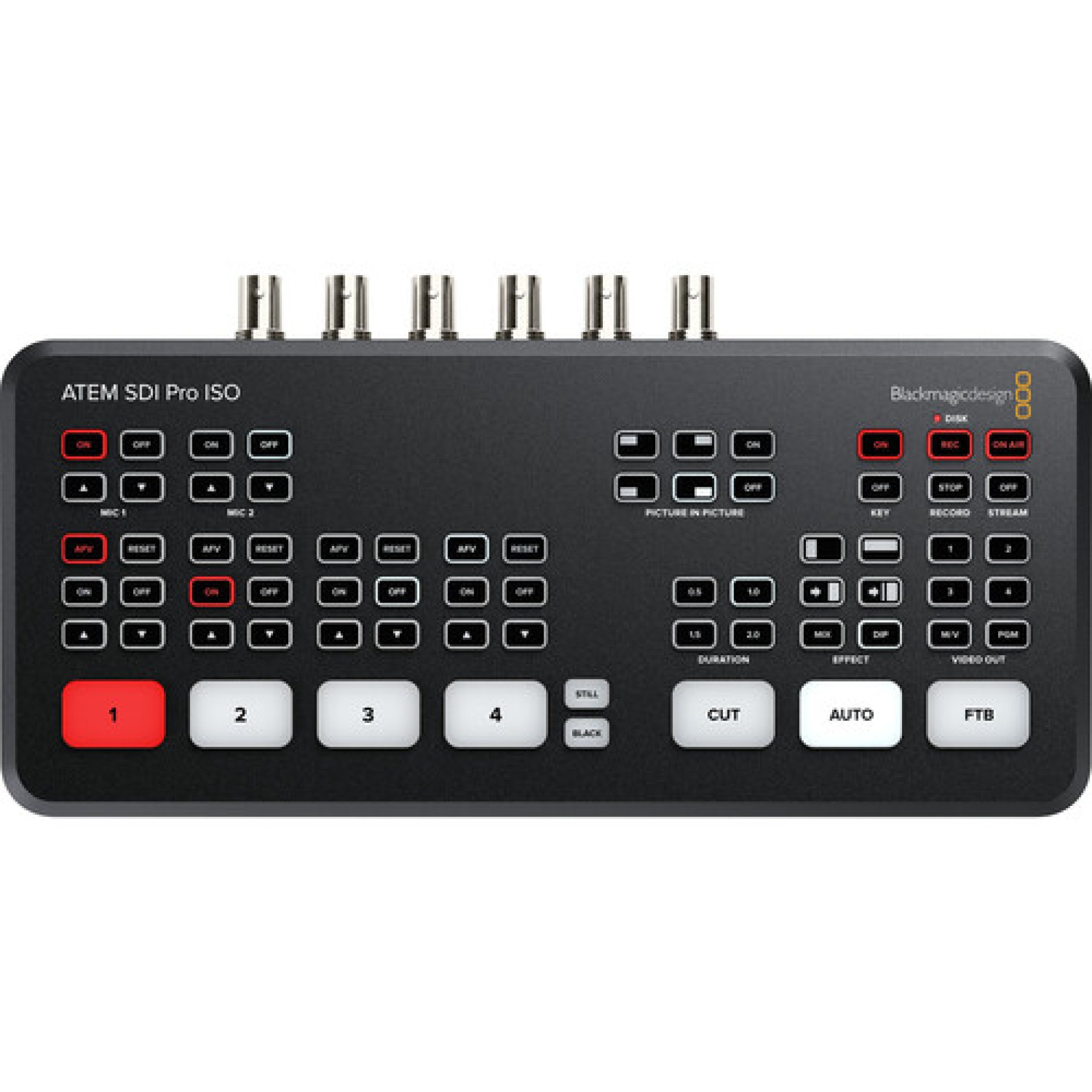

• Dedicated hardware buttons allow operators to quickly perform camera switching, streaming, recording, transitions, picture-in-picture effects, and audio adjustments without navigating software menus, improving speed and reliability during live broadcasts.

• The durable construction is designed for continuous professional operation while remaining lightweight enough for transportation between production sites.

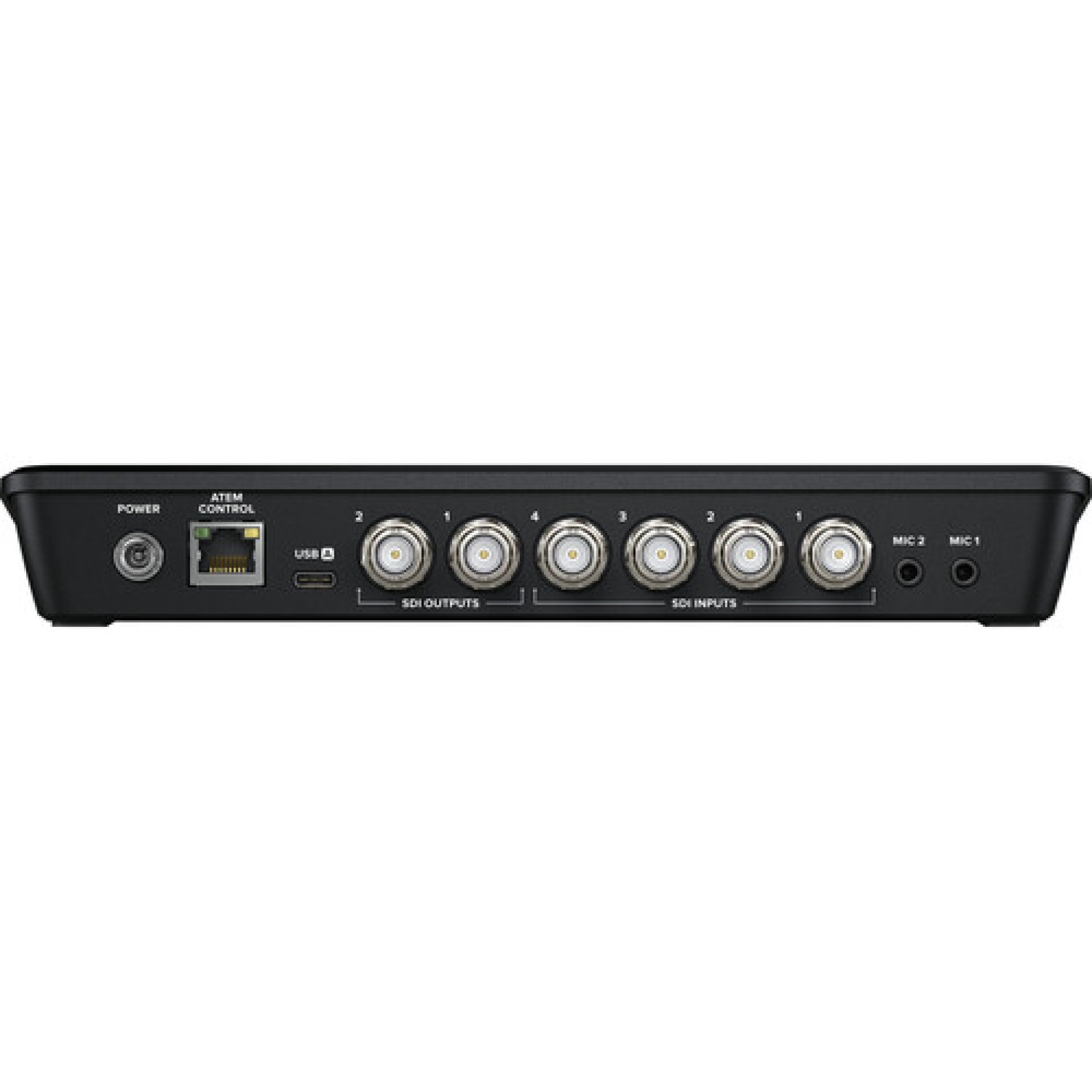

• Rear-mounted SDI, Ethernet, USB-C, audio, and power connections simplify installation and cable organization, making both permanent and temporary production setups clean and efficient.

• Full compatibility with Windows, macOS, and Blackmagic's expanding ATEM ecosystem ensures long-term workflow flexibility for professional production environments.

Blackmagic ATEM SDI Pro ISO Switcher Applications

The Blackmagic ATEM SDI Pro ISO Switcher is ideal for:

• Television broadcasting

• Church live streaming

• Corporate events

• Live sports production

• Educational broadcasting

• Podcast production

• News production

• Conference streaming

• Multi-camera interviews

• Professional video production

Blackmagic ATEM SDI Pro ISO Switcher FAQs

How many SDI inputs does the ATEM SDI Pro ISO have?

It features 4 professional 3G-SDI inputs with automatic frame synchronization and standards conversion.

Does it record every camera individually?

Yes. It records all four SDI inputs plus the live program output simultaneously.

Can it stream directly without a software encoder?

Yes. The built-in hardware streaming engine supports direct streaming using RTMP and SRT over Ethernet.

Does it create a DaVinci Resolve project automatically?

Yes. Every ISO recording session automatically generates a DaVinci Resolve project for fast post-production editing.

Can it be used as a webcam?

Yes. The USB-C connection functions as a professional webcam for Zoom, Teams, OBS Studio, Skype, and many other applications.

Blackmagic ATEM SDI Pro ISO Switcher Pros & Cons

Blackmagic ATEM SDI Pro ISO Switcher Conclusion

The Blackmagic ATEM SDI Pro ISO Switcher is an outstanding solution for professional broadcasters and production teams requiring reliable SDI connectivity, advanced ISO recording, direct hardware streaming, and efficient DaVinci Resolve integration. Its combination of professional broadcast features, compact design, and streamlined editing workflow makes it an excellent choice for television production, live events, corporate broadcasting, education, and worship environments.

Available in Kenya for KSh 130,000, the Blackmagic ATEM SDI Pro ISO Switcher delivers professional broadcast performance and exceptional post-production flexibility.
